Boom Barriers​

Book now

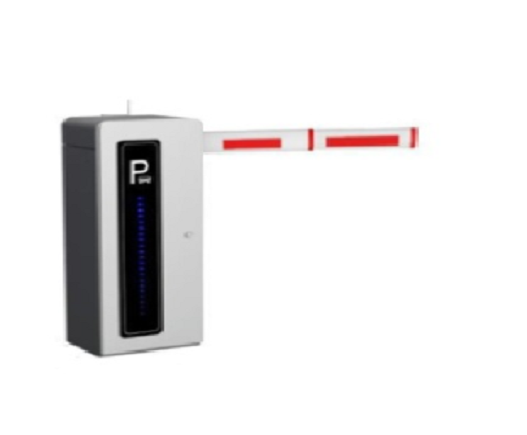

Real Time Boom Barrier

Case Size
1035*282*340 (mm) (40.7″H*11.1″*13.5″)
Product
Security modern barrier gate price parking barrier gate pedestrian barrier gate with remote
Boom Size
4M, 5M, 6M
Optional Color
Orange, blue or yellow
Action Time
6 Sec. / 3 Sec
Rating Voltage
AC220V
Boom Height
1035mm (40.7″)
Storage Temperature
-35°C to +95°C
Working temperature
-30°C to +60°C
Relative humidity
<90% coagulation free
Working temperature
AC230V±10%/AC110V±10%
Boom Type
Straight/Fence/Folding Boom
Rating Power
100W
Boom LED light
Optional
Production Rating
IP65

First Name
Last Name
Email
Message
The form has been submitted successfully!
There has been some error while submitting the form. Please verify all form fields again.
book now

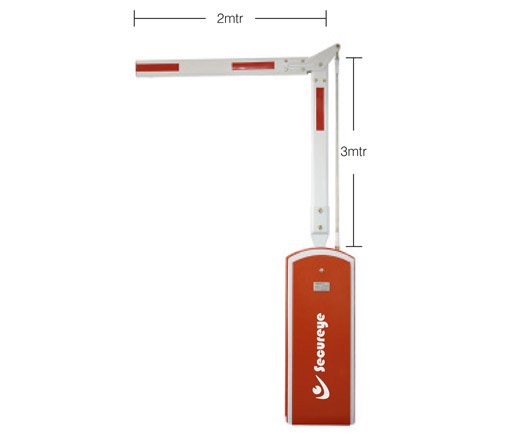

S-BB200F

Maximum Boom Length up to 5mtr (With Articulated Arm)
Aluminium Boom in 75/80mm OD
Opening Time: 3-6 Second
Power Supply 230V
Motor Capacity 240W
With IP55 protection grade
Duty Cycle 100%
Operating Temp:-10°C to +60°C)
Colour RAL2002.

First Name
Last Name
Email
Message
The form has been submitted successfully!
There has been some error while submitting the form. Please verify all form fields again.
book now

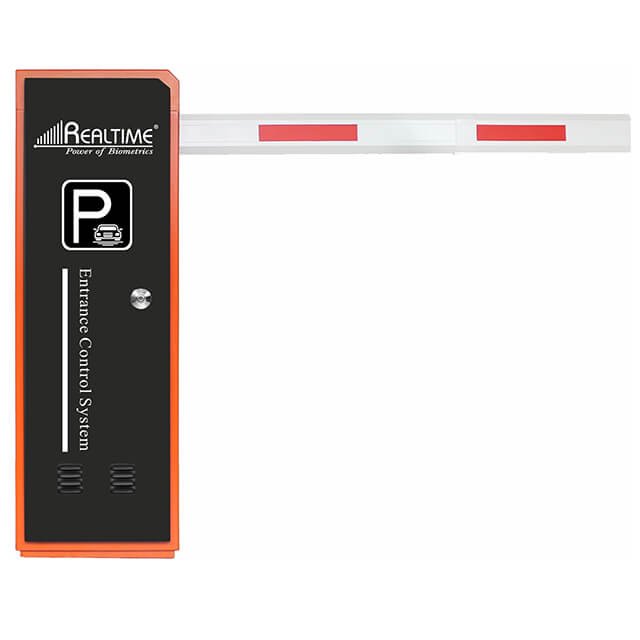

Smart LED Boom Barrier

Maximum Boom Length – Up to 6m retractable aluminium boom
Fast Operation – Opening time: 3-6 seconds for smooth traffic control
Reliable Power Supply – 220V ±10% with IP55 protection grade
100% Duty Cycle – Designed for continuous operation
Remote Control – Operates up to 10-20 meters distance
Manual Override – Allows manual operation in case of power failure
External Integration – Supports vehicle detectors for enhanced security
LED Flashing Light – Built-in double LED lights for better visibility

Adopt crank connecting rod mechanism driving, reduce the mechanical failure, low noise, no pollution, no need to maintain.
Remote control distance up to 10 ~ 20 meters, can control way of the brake switch form at any time, ensure the channel unimpeded
The balance of the special institutions, always covers up the vertical rod, rod level, and smooth, it can adjust the length according to the free brake rod.
Remote control is more convenient and can open and stop at any time in special circumstances.
Can be an external manual control button line stop. on, off in case of power failure.
Support external vehicle detector, higher sensitivity, and more stable
The exclusive built-in double LED flashing light needs no special maintenance and ensures complete visibility.

First Name
Last Name
Email
Message
The form has been submitted successfully!
There has been some error while submitting the form. Please verify all form fields again.
book now

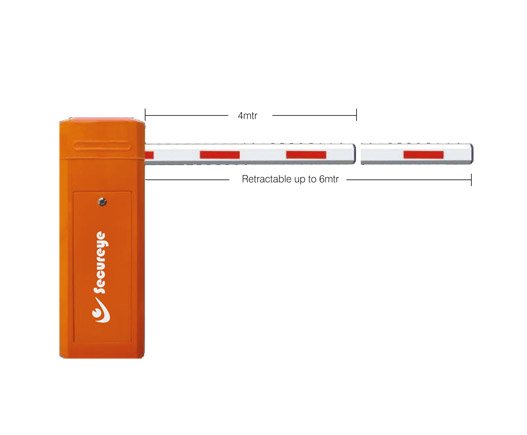

S-BB100
Automatic
Boom Barrier

Maximum Boom Length up to 6mtr (With Retraceable Feature)
Aluminium Boom in 75/80mm OD
Opening Time: 3-6 Second
Power Supply: 230V
With IP55 protection grade
Duty Cycle 100%
Operating Temp:-10°C to +60°C
Colour RAL2002
